Sending arrays to SQL Server: Xml vs. Comma Separated Values

time to read 4 min | 640 words

I spoke before about using the XML capabilities of SQL Server in order to easily pass list of values to SQL Server. I thought that this was a pretty good way to go, until I started to look at the performance numbers.

Let us take a look at this simple query:

DECLARE @ids xml
SET @ids = '<ids>

SELECT * FROM Customers
WHERE CustomerID IN (SELECT ParamValues.ID.value('.','NVARCHAR(20)')
FROM @ids .nodes('/ids/id') as ParamValues(ID) )

This simple query has a fairly involved execution plan:

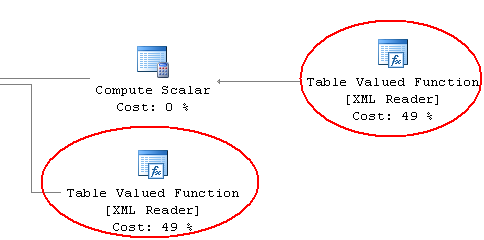

This looks to me like way too much stuff for such a simple thing, especially when I see this:


So the XML stuff is taking up 98% of the query?

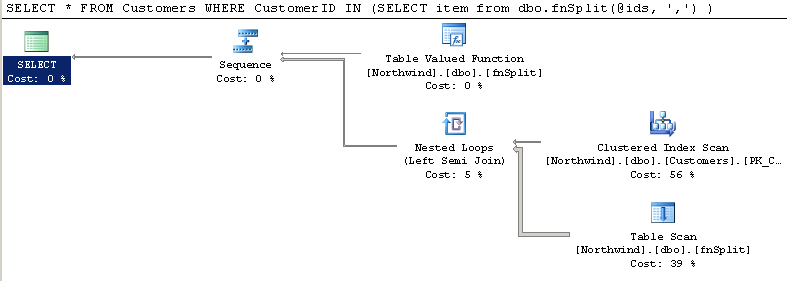

I then checked the second route, using fnSplit UDF from here. Using it, I got this result:


So it looks like it is significantly more efficient than the XML counter part.

But what about the larger scheme? Running the fnSplit over 9,100 items got me a query that took nearly 45 seconds, while a XML approach over the same set of data had no measurable time over just 91 records.

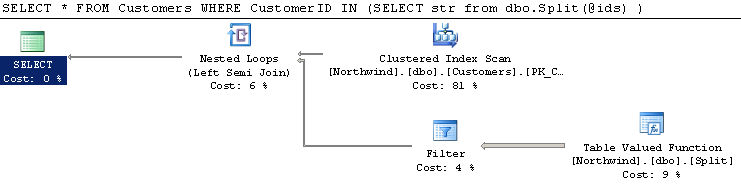

I then tried a simple SqlCLR function, and got this the same performance from it:


The code for the function is:

 [SqlFunction(FillRowMethodName = "FillRow", TableDefinition = "str NVARCHAR(MAX)")]
 public static IEnumerable Split(SqlString str)
     if (str.IsNull)
         return null;
     return str.Value.Split(',');

 public static void FillRow(object obj, out SqlString str)
     string val = (string) obj;

     if (string.IsNullOrEmpty(val))
         str = new SqlString();
         str = new SqlString(val);

As you can probably guess, there are all sorts of stuff that you can do to make it better if you really want, but this looks like a very good approach already.

Tripling the size of the data we are talking about to ~30,000 items had no measurable difference that I could see.

Obviously, when you are talking about those numbers, an IN is probably not something that you want to use.
