Using TLS with RustPart II - Client authentication
The task that I have for now is to add client authentication via X509 client certificate. That is both obvious and non obvious, unfortunately. I’ll get to that, but before I do so, I want to go back to the previous post and discuss this piece of code:
I’ll admit that I’m enjoying exploring Rust features, so I don’t know how idiomatic this code is, but it is certainly dense. This basically does the setup for a TCP listener and setting up of the TLS details so we can accept a connection.
Rust allows us to define local functions (inside a parent function), this is mostly just a way to define a private function, since the nested function has no access to the parent scope. The open_cert_file function is just a way to avoid code duplication, but it is an interesting one. It is a generic function that accepts an open ended function of its own. Basically, it will open a file, read it and then pass it to the function it was provided. There is some error handling, but that is pretty much it.

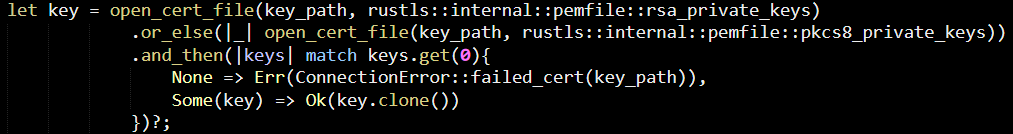

The next fun part happens when we want to read the certs and key file. The certs file is easy, it can only ever appear in a single format, but the key may be either PKCS8 or RSA Private Key. And unlike the certs, where we expect to get a collection, we need to get just a single value. To handle that we have:
First, we try to open and read the file as a RSA Private Key, if that isn’t successful, we’ll attempt to read it as PKCS8 file. If either of those attempts was successful, we’ll try to get the first key, clone it and return. However, if there was an error in any part of the process, we abort the whole thing (and exit the function with an error).
From my review of Rust code, it looks like this isn’t non idiomatic code, although I’m not sure I would call it idiomatic at this point. The problem with this code is that it is pretty fun to write, when you read it is obvious what is going on, but it is really hard to actually debug this. There is too much going on in too little space and it is not easy to follow in a debugger.

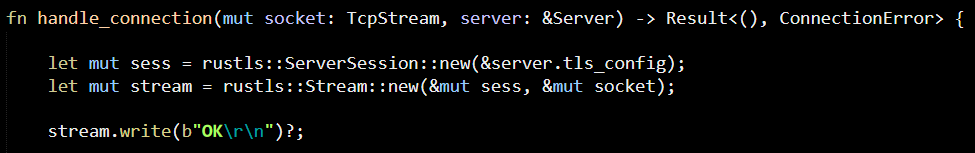

The rest of the code is boring, so I’m going to skip that and start talking about why client authentication is going to be interesting. Here is the core of the problem:
In order to simplify my life, I’m using the rustls’ Stream to handle transparent encryption and decryption. This is similar to how I would do it when using C#, for example. However, the stream interface doesn’t have any way for me to handle this explicitly. Luckily, I was able to dive into the code and I think that given the architecture present, I can invoke the handshake manually on the ServerSession and then hand off the session as is to the stream.
What I actually had to do was to setup client authentication here:

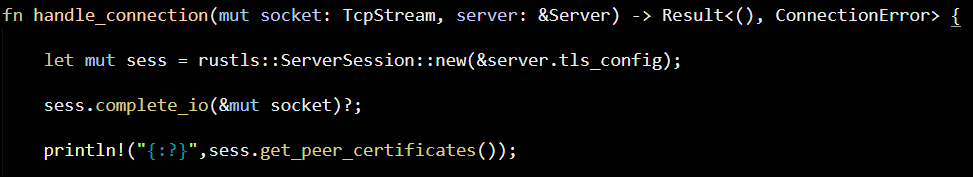

And then manually complete the handshake first:
And this is when I run into a problem, when trying to connect via my a client certificate, I got the following error:
I’m assuming that this is because rustls is actually verifying the certificate against PKI, which is not something that I want. I don’t like to use PKI for this, instead, I want to register the allowed certificates thumbprints, but first I need to figure out how to make rustls accept any kind of client certificate. I’m afraid that this means that I have to break out the debugger again and dive into the code to figure out where we are being rejected and why…

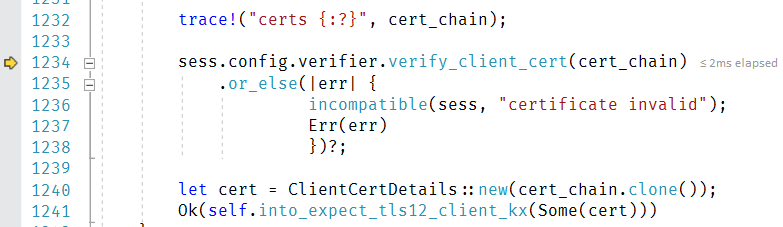

After a short travel in the code, I got to something that looks promising:

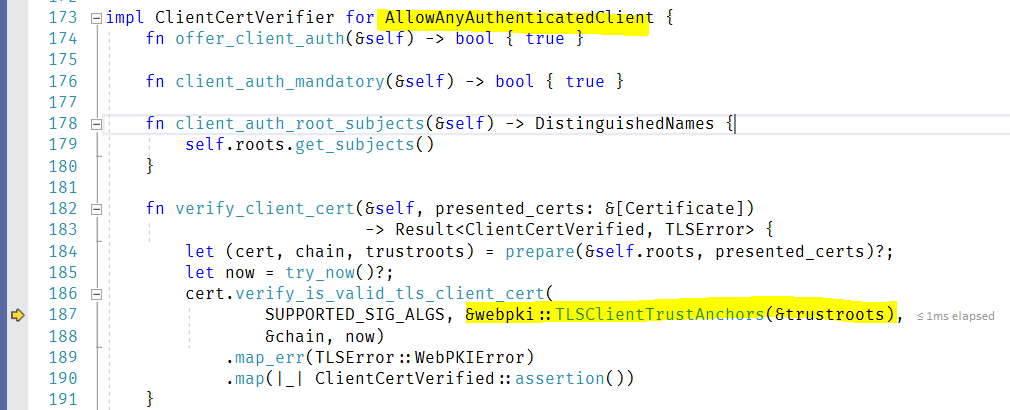

This looks like something that I should be able to control to see if I like or dislike the certificate. Going inside it, it looks like I was right:

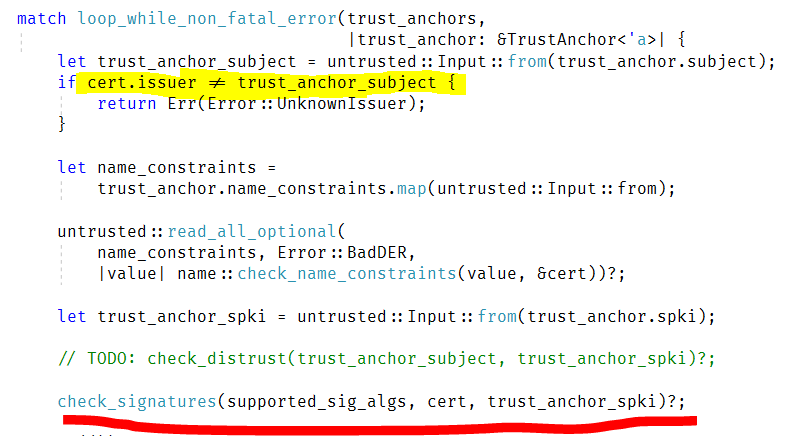

I think that I should be able to write an implementation of this that would do the validation without checking for the issuer. However, it looks like my plan run into a snag, see:
I’m not sure that I’m a good person to talk about the details of X509 certificate validation. In this case, I think that I could have done enough to validate that the cert is valid enough for my needs, but it seems like there isn’t an way to actually provide another implementation of the ClientCertVerifier, because the entire package is private. I guess that this is as far as I can use rustls, I’m going to move to the OpenSSL binding, which I’m more familiar with and see how that works for me.

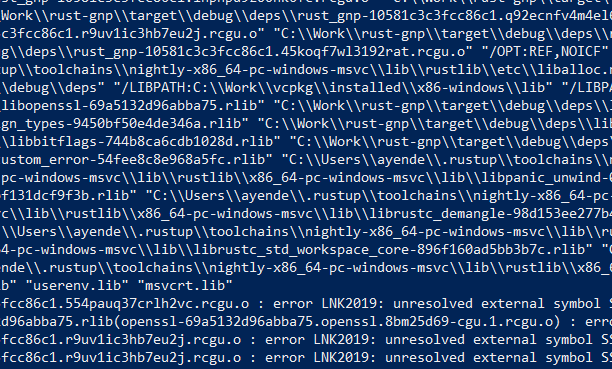

Okay, I tried using the rust OpenSSL bindings, and here is what I got:
So this is some sort of link error, and I could spend half a day to try to resolve it, or just give up on this for now. Looking around, it looks like there is also something called native-tls for Rust, so I might take a peek at it tomorrow.
More posts in "Using TLS with Rust" series:
- (17 Jan 2019) Authentication
- (11 Jan 2019) Part III–Will native tls do the trick?
- (07 Jan 2019) Part II - Client authentication
- (02 Jan 2019) Part I
Comments
The trick you missed here (from the future post date it seems you're blogging post-facto?) is the
dangerous_configuration
compile-time feature flag. If you enable that, theClientCertVerifier
trait is exposed publicly and you can write your own implementation.This is not exposed by default to make it intentionally hard to do the unsafe (because MITM-able) thing of disabling authentication (or implement it incorrectly), which I think makes a lot of sense for the most common cases of using TLS clients.
Dirkjan, I'm usually scheduling my posts in advance, so at this point, I'm already done with the Rust / TLS work.
I actually saw that
dangerous_configuration
flag mentioned in the docs, but didn't pay it any attention. In retrospect, probably wouldn't have changed things. I'm not aware of the internals of TLS engine to know what I can safely skip without impacting the security of the system. Pretty sure that not validating the issuer of the certificate is fine (since I can do that with OpenSSL and I trust it) but I don't know if skipping that check in rustls would mean that I might get a cert that hasn't been properly validated.If you implement that interface with an implementation that checks thumbprints, and avoid using the webpki crate at all, you'll (probably) be fine assuming your thumbprint checking is done correctly.
I am curious how you would do it with other libraries, and why you'd be more confident doing it with them than you would with Rustls. AFAICT the main difference is that Rustls tells you that doing this is dangerous whereas the others don't, but that doesn't actually change how dangerous it would be.
Brian, My main concern here is related to whatever the thumbprint I would get has been verified. In other words, whatever removing certain pieces from this code would result in a thumbprint over an invalid certificate. I'm not concerned about this in other codebases because they will give me a client cert without modification, so they do all the usual checks before hand.
