A case of massive stupidity

This is a story about a bug that frustrated, annoyed, and nearly drove me mad. It also cost me ridiculous amount of time. The problem? The communication from the profiled application to the profiler with NH Prof is done using a Protocol Buffers network stream. The problem? It kept failing. Now, networks are unreliable, but they are not that unreliable, especially since all my tests are focused on local machines scenario.

I tried quite hard to create a very reliable system, but I was growing extremely frustrated, it failed, sometimes, in a very unpredictable manner, and in ways that looked like the entire idea is broken. To add insult to injury, any isolated test that I run worked perfectly. Out of ideas and nearly out of of my mind, I turned to the old adage: “If it doesn’t work, kick it, if it still doesn’t work, kicker it harder” and created a stress test that basically run several of the problematic tests in a loop until I could finally reproduce it in a more or less consistent fashion.

It was fairly clear that I am getting a lot of errors when reading the data, and for a while, I focused on that, thinking that I wasn’t handling the connection properly. But even after I did a lot of work on hardening the connection code, it still failed quite often. Now it didn’t fail on reads, it failed on missing data that the tests expected to be there.

After a while I started concentrating on the writing side, I changed the code to write the data to a file, rather than a network stream. At that point, I was pretty sure that my file system was working properly, and I intended to do analyses of the file as I load it. Imagine my surprise when I found out that the file, too, was corrupt. That made me abandon the reading-cause-the-error scenario, and cause a total focus on the writing part. After a while, I managed to get a clue, in the form of the following error:

System.IndexOutOfRangeException: Index was outside the bounds of the array.
   at Google.ProtocolBuffers.CodedOutputStream.WriteRawByte(Byte value) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 530
   at Google.ProtocolBuffers.CodedOutputStream.WriteRawByte(UInt32 value) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 534
   at Google.ProtocolBuffers.CodedOutputStream.SlowWriteRawVarint32(UInt32 value) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 464
   at Google.ProtocolBuffers.CodedOutputStream.WriteRawVarint32(UInt32 value) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 480
   at Google.ProtocolBuffers.CodedOutputStream.WriteTag(Int32 fieldNumber, WireType type) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 458
   at Google.ProtocolBuffers.CodedOutputStream.WriteMessage(Int32 fieldNumber, IMessage value) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 220
   at HibernatingRhinos.NHibernate.Profiler.Appender.Messages.LoggingEventMessage.Types.StackTraceInfo.WriteTo(CodedOutputStream output) in C:\NHProf\HibernatingRhinos.NHibernate.Profiler.Messages.cs:line 560
   at Google.ProtocolBuffers.CodedOutputStream.WriteMessage(Int32 fieldNumber, IMessage value) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 222
   at HibernatingRhinos.NHibernate.Profiler.Appender.Messages.LoggingEventMessage.WriteTo(CodedOutputStream output) in C:\NHProf\HibernatingRhinos.NHibernate.Profiler.Messages.cs:line 843
   at Google.ProtocolBuffers.CodedOutputStream.WriteMessage(Int32 fieldNumber, IMessage value) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 222
   at HibernatingRhinos.NHibernate.Profiler.Appender.Messages.MessageWrapper.WriteTo(CodedOutputStream output) in C:\NHProf\HibernatingRhinos.NHibernate.Profiler.Messages.cs:line 1830
   at Google.ProtocolBuffers.CodedOutputStream.WriteMessage(Int32 fieldNumber, IMessage value) in C:\OSS\Buffy\ProtocolBuffers\CodedOutputStream.cs:line 222
   at Google.ProtocolBuffers.MessageStreamWriter`1.Write(T message) in C:\OSS\Buffy\ProtocolBuffers\MessageStreamWriter.cs:line 26
   at HibernatingRhinos.NHibernate.Profiler.Appender.NHibernateProfilerAppender.WriteToProfilerWithRetries(IEnumerable`1 wrappers, Int32 retryCount) in C:\NHProf\NHibernateProfilerAppender.cs:line 150

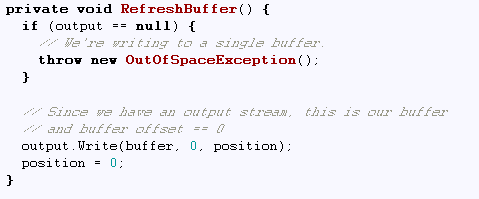

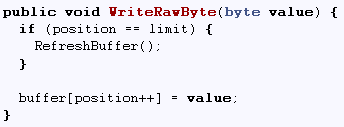

Ah ha! I thought, I know what is wrong, "select() is broken”. With that in mind, I looked at the relevant source file, and tried to figure out what the bug was. Here are the relevant sections:



Looking at that piece of code, it was very clear where the error was. Do you see it?

I won’t blame you if you don’t, the error is clear because it is not there. This is perfectly legal code, with no option for errors. Since we did get an error, it is clear that something is broken. And the problem is at a higher level. Usually, in such scenarios, it is a race condition that cause a violation of invariants. And that is the case here. Looking at the code, it was clear what the problem was, I was synchronizing access to the stream, but I wasn’t synchronizing access to the writer.

In this case, we actually got a real error, that pointed me very quickly to the real issue. In most scenarios, what actually happened was silent data corruption at the write end, which I interpreted as problems with the use of the unreliable network.

Again, yuck, and I feel really stupid.

Comments

configurator
05/23/2009 04:38 PM by
configurator

What happened here is not massive stupidity. Massive stupidity is not knowing why this needs the synchronization. Mistakes, though, happen even to the best of us. Everyone makes mistakes - even Jon Skeet. A mistake of omission of synchronization is damn annoying, and usually very time consuming, but it sure isn't stupidity.

firefly
05/23/2009 05:21 PM by
firefly

How did you fix it?

CaliCoder
05/24/2009 03:11 AM by
CaliCoder

Ayende,

how are the Google Protocol Buffers working out? Is it what you thought in terms of performance?

firefly
05/24/2009 08:29 AM by
firefly

Oren,

I mean to ask where did you choose to do the write synchronization, in the higher up code or right in the protocolbuffers file? I am guessing the later is that right?

Ayende Rahien
05/24/2009 09:08 AM by
Ayende Rahien

The performance wasn't actually the major reason.

I wanted a cross platform format that had good versioning story.

It helps that it is very perfomant, because I am handling large number of messages. So far I haven't even had a reason to think about it, so I am very happy

Ayende Rahien
05/24/2009 09:12 AM by
Ayende Rahien

lock(writer)

{

writer.Write(msg);

}

I didn't touch the protobuf code. Protobuf isn't aware of threading, and I don't think it should.

configurator
05/27/2009 12:27 AM by
configurator

Isn't locking on objects you can't control, such as lock (writer), discouraged? Wouldn't it be better to have a locker object?

Ayende Rahien
05/27/2009 09:44 AM by
Ayende Rahien

configurator,

But I do control writer, I am the only owner of the reference
