NH Prof: Performance implications for the profiled application

I got a couple of complaints about this, and I think that this is a really important issue. Using NH Prof slow down the profiled application. That is to be expected, since we require the application to do more work, but it is not as good as we can hope it would be.

Here is the test scenario, running against the Northwind database (thanks Davy for supplying it):

class Program
{
	static void Main(string[] args)
	{
		var sp = Stopwatch.StartNew();

		HibernatingRhinos.NHibernate.Profiler.Appender.NHibernateProfiler.Initialize();

		ISessionFactory sessionFactory = CreateSessionFactory();

		using (var session = sessionFactory.OpenSession())
		{
			var products = session.CreateCriteria(typeof(Product))
				.SetCacheable(true).List<Product>();
		}

		using (var session = sessionFactory.OpenSession())
		{
			var products = session.CreateCriteria(typeof(Product))
				.SetCacheable(true).List<Product>();
		}

		using (var session = sessionFactory.OpenSession())
		{
			var products = session.CreateCriteria(typeof(Product))
				.SetCacheable(true).List<Product>();
		}

		using (var session = sessionFactory.OpenSession())
		{
			var products = session.CreateCriteria(typeof(Product))
				.SetCacheable(true).List<Product>();
		}

		using (var session = sessionFactory.OpenSession())
		{
			var products = session.CreateCriteria(typeof(Product))
				.SetCacheable(true).List<Product>();
		}

		using (var session = sessionFactory.OpenSession())
		{
			var products = session.CreateCriteria(typeof(Product))
				.SetCacheable(true).List<Product>();
		}

		Console.WriteLine(sp.ElapsedMilliseconds);
	}

	private static ISessionFactory CreateSessionFactory()
	{
		Configuration configuration = new Configuration()
			.Configure()
			.AddAssembly("nhprof_experiment");

		return configuration.BuildSessionFactory();
	}
}

With NH Prof active, this takes: 13 - 16 seconds to run.

Without NH Prof running, this takes: 12 seconds to run.

The reason for that difference is probably that NH Prof is doing some work when new events come in, so it steals some CPU time from the other process.

Disabling NH Prof (commenting the NHibernateProfiler.Initialize()), this takes 4 - 6 seconds to run. This is a huge difference.

I decided to see whatever this is something that I can actually do something about, and turned the NHibernateAppender into a no op. So the next run would measure just the time that it takes to NHibernate to generate the event that I care about, and not whatever processing I am doing on the profiled application side.

The result both surprised and thrilled me: 4.8 seconds!

Why was I happy about this?

Because it meant that I was actually at fault here. And if I was actually at fault, it means that I can fix things. I pulled up the trusty dotTrace Profiler, and quickly identified a hot spot:


Well, in this case, you need to understand a bit about how NH Prof get the data from the profiled application. We gather the event stream and batch send it to the actual profiler. Those sends are RPC calls, and it is expected that they would be slow. Except, they are not happening in the same thread as the actual application, so they should have little effect on the actual performance of the test scenario that we have above.

I decided to try it out again, this time, we will change FlushMEssagesToProfiler and SendStatsticInformation to no ops, and see what happens.

Running the application again, we got runtime of 13 seconds. That confirmed my original suspicion, that while those actions takes a long time, they do not contribute to the actual perf problem in the actual code.

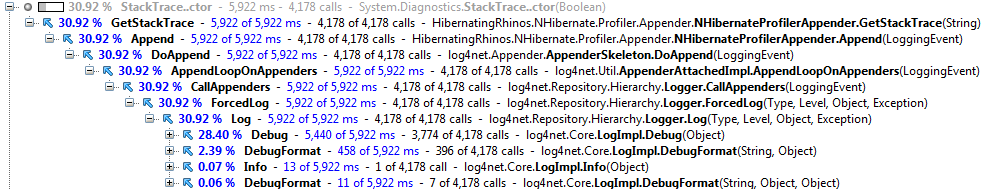

I run the code again under the profiler, looking deeper. That led me to this discovery:


Well, I knew that stack trace was slow, but I sincerely thought that I was doing better job in reducing the number of times that I had to call it. Calling it 4,178 times is obviously wrong.

We track the stack trace for the following event sources:

  • NHibernate.SQL
  • NHibernate.Event.Default.DefaultLoadEventListener
  • NHibernate.Cache.StandardQueryCache
  • NHibernate.Transaction.AdoTransaction

The problem is that some things, like DefaultLoadEventListener, are generating a lot of events that I don't really care about. I started approaching the problem by applying filters, so I would only ever create the stack trace for the events I truly care about. That brought the cost down significantly, so now it took 6 - 7 seconds. We shaved 5 - 10 seconds of the total running time, awesome.

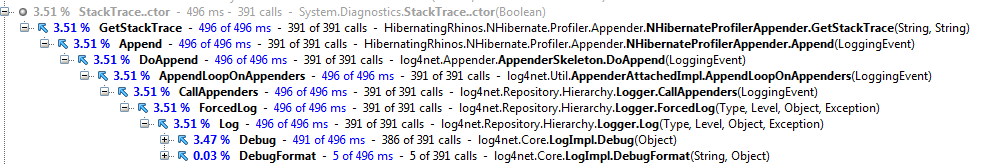

But I think that we can still do better than that. Let us see what dotTrace is saying:


dotTrace is saying that we now reduced the time this takes from 31% to 3.5%. We have better things to do than to look at this piece of code again, then.

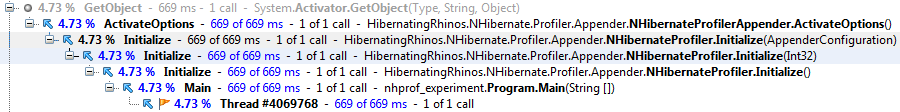

Let us focus on something that will give us more benefit, then:


This is actually the initial RPC call between the appender and the profiler. It establish the TCP connection, among other things, so it takes a while to process. Almost 0.7 seconds is a lot of time. I changed that code to run on a background thread, further improving the startup time of the application.

Time to execute the code now? 5.8 seconds.

Time to go to dotTrace again, I think.

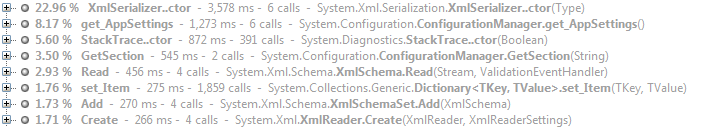

And we can see that what dominate the actual time for the test is the startup concerns of NHibernate. But I think that in a real scenario, the time for generating a stack trace would again become a meaningful for performance.

There are probably additional things that I can do to optimize this, but I think that this is a  great step. To remind you, the initial costs were:

  • No profiler: 4 - 6 seconds
  • With profiler: 13 - 16 seconds

After the changes, we are with: 5 - 7 seconds, which I consider entirely reasonable.

And for a few hours of performance tuning, reducing the time by 8-9 seconds and by over 60%, I think I did good.

The code pass all the tests and was committed, so in about ten minutes, you would be able to download it from the NH Prof site.

Comments

Kyle Szklenski
02/14/2009 02:43 PM by
Kyle Szklenski

That's pretty awesome. I love stories of good optimization, because I used to be in charge of profiling and identifying bottlenecks at a previous company. It was incredibly fun, and they had incredibly high restrictions on how fast things had to be and so forth. Hm, I thought I'd written a post at my blog about the two main ways of optimizing, but I can't seem to find it. Oh well. Probably most of the people who read your blog are familiar with them anyway!

By the way, would it be possible to cache the StackTrace object? I am not sure what you'd use for the key, but it seems like if you were getting calls to the GetStackTrace in the same exact positions, it's gonna have the same or very similar StackTrace objects every time. Just a thought, and maybe not a good one!

Ayende Rahien
02/14/2009 02:51 PM by
Ayende Rahien

Kyle,

The problem is how do you identify the key :-)

Gabriel N. Schenker
02/15/2009 08:51 AM by
Gabriel N. Schenker

I have identified the same problems in one of my legacy apps. When NHProf was active the application was REALLY slow! I have not mesured the difference but out of my feeling I would say at least a factor of 3 to 5 slower than without NHProf. Please note: it is a legacy app and has many "sub-optimal" queries (n+1 and the like).

I'll give the new version a try as soon as possible! I still think that NHProf ROCKS!!!

Dave
02/16/2009 08:22 AM by
Dave

I've put the NHibernate.Initialize() call in a #if block. Personally I don't care that while profiling Nhibernate the application is slower than usual. When I'm done profiling I simply remove the conditional symbol "DEBUG_NHIBERNATE".

Let me put it this way. If after each NHibernare profiling session, a slow application is the only thing that takes time, I'm very, very, very happy. But mostly I have to remind developers that certain habbits don't do well when it's come to performance.

A faster profiling session would I consider as a bonus, not as a must.
