Having Fun with SmartGridComponent

I am preparing to my Dev Teach talks, and I wanted to show a cool view component. Here is a sample of how it looks like now:

component SmartGridComponent, {

@source : customers,

@displayAddress: false,

@displayFax: false,

@displayPhone: false

}

I want to ignore some of the properties of the customer entity. This demonstrate both symbols in Brail (hmm, sounds like something else altogether :-) ) and using Convention over Configuration for this.

And here is a bit more complex example, showing how to display just the items that we want, in the order that we want:

component SmartGridComponent, {

@source : customers,

@columns: [

@customerId,

@companyName,

@contactName,

@contactTitle

]

}

And here is how I can override spesific behavior for the grid:

component SmartGridComponent, {

@source : customers,

@columns: [

@customerId,

@companyName,

@contactName,

@contactTitle

]}:

section customerIdHeader:

output "<th>Id</th>"

end

section customerID:

<td>${Html.LinkTo(item, "Customers", "ListOrder", item)}</td>

end

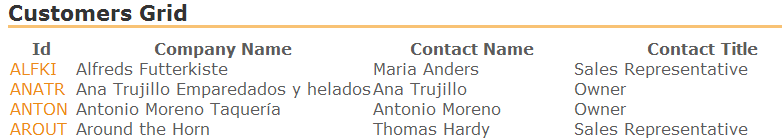

Here is how the last one looks like, by the way:

Comments

04/05/2007 06:36 AM by

Anders

Is it possible to do something like @customerCompany.Name?

04/05/2007 10:22 AM by

Ayende Rahien

It is not supported at the moment, but yes, that is trivially possible

04/05/2007 11:46 AM by

Richard LOPES

Hi,

I like this kind of code ! Looks like Rails.

In fact, Rails made me also build my components thinking convention over configuration. Simple ideas like that make our developer's lives easier !

I often think: Why should things be complicated ?

And what is a good programmer if not a lazy one ?

Thanks.

04/05/2007 12:44 PM by

Jose

Nice code to a nice result. Where can I find the SmartGridComponent?

04/05/2007 10:32 PM by

Brendan Rice

Nice work Ayende. Are you teasing us or are you going to show us the source?

I found this great link the other day, I just had to share:

http://icant.co.uk/csstablegallery/index.php?css=20#r20

04/05/2007 10:38 PM by

Ayende Rahien

Definitely teasing, I have got a secret agenda that I want to carry on for a while

04/07/2007 08:12 PM by

Ayende Rahien

@Jose,

http://rhino-tools.svn.sourceforge.net/viewvc/rhino-tools/trunk/SampleApplications/Exesto/Rhino.Components/

04/12/2007 10:15 AM by

Adam B

I am using your smart grid component now exactly as you have described here albeit with NVelocity. It's really nice to use.

I was wondering, is it possible to add extra columns that are not bound to the source, such as an edit and delete column? Perhaps passing in an id for the $item value so to use $HtmlHelper.LinkTo('Edit', 'customers', 'edit', $item). I haven't been able to figure it out.

04/12/2007 08:44 PM by

Simone Busoli

Ever heard of Repeater, DataList and GridView?

04/12/2007 08:49 PM by

Ayende Rahien

@Simone,

Why, yes I did.

Feel free to try to generate the same client UI for the grid view, I would be interested in seeing it.

The kind of things that I presenting here are nearly impossible to handle cleanly with those controls.

04/13/2007 12:19 AM by

Simone Busoli

Here's the code for a GrediView with the same UI.And you get sorting paging and a lot more for free:

<asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False" DataSourceID="SqlDataSource1">

        <Columns>

            <asp:HyperLinkField DataNavigateUrlFields="CustomerID" DataNavigateUrlFormatString="ListOrder.aspx?id={0}"

                DataTextField="CustomerID" HeaderText="Id" SortExpression="CustomerID" />

            <asp:BoundField DataField="CompanyName" HeaderText="Company Name" SortExpression="CompanyName" />

            <asp:BoundField DataField="ContactName" HeaderText="Contact Name" SortExpression="ContactName" />

            <asp:BoundField DataField="ContactTitle" HeaderText="Contact Title" SortExpression="ContactTitle" />

        </Columns>

    </asp:GridView>

04/13/2007 12:30 AM by

Ayende Rahien

@Simone,

Please check out this post:

http://ayende.com/Blog/archive/2007/04/08/Building-View-Components-For-MonoRail.aspx

Those are the capabilities that I am referring to, not just the basic of it.

Sorting and paging in the UI layer are a bad practice, mostly because it performs horribly the moment you put evena moderate amount of data into the system

04/13/2007 12:42 AM by

Simone Busoli

Looks to me like nothing you can't do with a Repeater as well, while a lot more like you're just trying to emulate what web controls do.

04/13/2007 08:32 AM by

Ayende Rahien

Simone,

The idea here is not the formatting.

The idea is the ease of using presentation logic.

If I want to display in red based on a certain condition:

<% section customerName:

if Controller.IsCustomerInDebt(item):

 output "<td style='background-color: red'>${value}</td>"

end

end %>

Add several more condition, and a more complex UI requirements, and using web controls became a real PITA.

I did a screen cast on this subject, which you can watch here:

http://www.ayende.com/hibernating-rhinos.aspx

I hope it would make it clearer

04/13/2007 11:39 AM by

Simone Busoli

Didn't have time yet to check out your screencast, but I still don't get the point. Furthermore looks to me like your performing logic tasks in the view, what about using the ItemDataBound event of the ASP.NET web controls?

04/13/2007 11:48 AM by

Ayende Rahien

The ItemDataBound event is the reason that I am calling this PITA.

You have to workaround the control model to get what you want.

04/15/2007 11:38 PM by

Ayende Rahien

@Adam,

Yes, it is, just add them to the last column definition, and it would work

04/16/2007 08:09 AM by

Adam B

Ah yes, thanks, this worked:

set ($cols = ["Code", "Company", "Website", "Description", "PrimaryKey"])

blockcomponent(SmartGridComponent with "source=$results" "columns=$cols")

#PrimaryKeyHeader

    <th></th>

#end

#PrimaryKey

    <td>$HtmlHelper.LinkTo('Edit', 'account', 'edit', $item)</td>

    <td>$HtmlHelper.LinkTo('Delete', 'account', 'delete', $item)</td>

#end

end

04/29/2007 10:52 PM by

Tim Haines

Hi Ayende,

Interesting to see your work on this. The SmartGridComponent seems like it would be valuable to a lot of people that use Monorail. I've not yet grokked monorail enough to know if there's a place for contributed components? I'd like to use this, and extend it so clicking the column headers sorts the columns, add filters etc.

Having the component source live in a source repository for your demo app doesn't seem like a good place for a lot of people to reuse and improve it though.

What are your thoughts on this?

Cheers,

Tim.

04/30/2007 12:34 AM by

hammett

We could at least list them on http://using.castleproject.org

04/30/2007 01:56 AM by

Ayende Rahien

The SmartGridComponent is going to move to the Castle Contrib, to a project that would aggregate all the common components.

I just need to dedicate some time to actually finish this...

How are you going to handle the sorting?
